世界初、機械式時計の内部に35.7mlのオイルを充填!?【超弩級 複雑腕時計図鑑】

array(3) { [0]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1182089) ["id"]=> int(1182089) ["title"]=> string(15) "p130-131_point1" ["filename"]=> string(19) "p130-131_point1.jpg" ["filesize"]=> int(89259) ["url"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1.jpg" ["link"]=> string(55) "https://www.mens-ex.jp/archives/1182086/p130-131_point1" ["alt"]=> string(15) "p130-131_point1" ["author"]=> string(2) "37" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(15) "p130-131_point1" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1182086) ["date"]=> string(19) "2020-12-10 08:34:55" ["modified"]=> string(19) "2020-12-10 08:36:02" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(452) ["sizes"]=> array(18) { ["thumbnail"]=> string(80) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(80) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1-300x181.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(181) ["medium_large"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(452) ["large"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1.jpg" ["large-width"]=> int(750) ["large-height"]=> int(452) ["1536x1536"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(452) ["2048x2048"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point1.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(452) } } ["entry_gallery_description"]=> string(0) "" } [1]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1182090) ["id"]=> int(1182090) ["title"]=> string(15) "p130-131_point2" ["filename"]=> string(19) "p130-131_point2.jpg" ["filesize"]=> int(141470) ["url"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2.jpg" ["link"]=> string(55) "https://www.mens-ex.jp/archives/1182086/p130-131_point2" ["alt"]=> string(15) "p130-131_point2" ["author"]=> string(2) "37" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(15) "p130-131_point2" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1182086) ["date"]=> string(19) "2020-12-10 08:34:57" ["modified"]=> string(19) "2020-12-10 08:35:56" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(452) ["sizes"]=> array(18) { ["thumbnail"]=> string(80) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(80) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2-300x181.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(181) ["medium_large"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(452) ["large"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2.jpg" ["large-width"]=> int(750) ["large-height"]=> int(452) ["1536x1536"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(452) ["2048x2048"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point2.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(452) } } ["entry_gallery_description"]=> string(0) "" } [2]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1182091) ["id"]=> int(1182091) ["title"]=> string(15) "p130-131_point3" ["filename"]=> string(19) "p130-131_point3.jpg" ["filesize"]=> int(101186) ["url"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3.jpg" ["link"]=> string(55) "https://www.mens-ex.jp/archives/1182086/p130-131_point3" ["alt"]=> string(15) "p130-131_point3" ["author"]=> string(2) "37" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(15) "p130-131_point3" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1182086) ["date"]=> string(19) "2020-12-10 08:34:58" ["modified"]=> string(19) "2020-12-10 08:35:52" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(452) ["sizes"]=> array(18) { ["thumbnail"]=> string(80) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(80) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3-300x181.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(181) ["medium_large"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(452) ["large"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3.jpg" ["large-width"]=> int(750) ["large-height"]=> int(452) ["1536x1536"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(452) ["2048x2048"]=> string(72) "https://www.mens-ex.jp/wp/wp-content/uploads/2020/12/p130-131_point3.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(452) } } ["entry_gallery_description"]=> string(0) "" } }
Facebook
Twitter
友だち追加

>> この記事の先頭に戻る

この機構が凄い!

p130-131_sub1



 Point 1
ディスプレイユニットを満たす35.7㎖のオイル
時計内部に液体オイルを充填した機械式モデルの後継機となる本作。独自開発の2チャンバー・システムを採用し、自動巻きムーブメントの部屋、35.7㎖のオイルに浸したROCSユニットの部屋に分離。駆動機構の空間に水気が入らないようにした。

p130-131_sub2

 Point 2
マグネティックトランスミッション
2つのチャンバーに分離したムーブメントとROCS同士を接続するため、磁気によるトランスミッションを採用。複数のマイクロサイズ磁石が各チャンバーに装備され、それぞれが引き合うことで、自動巻きシステムとROCSモジュール間の相互伝達が可能となる。

p130-131_sub3

 Point 3
オイルの体積変動を相殺する

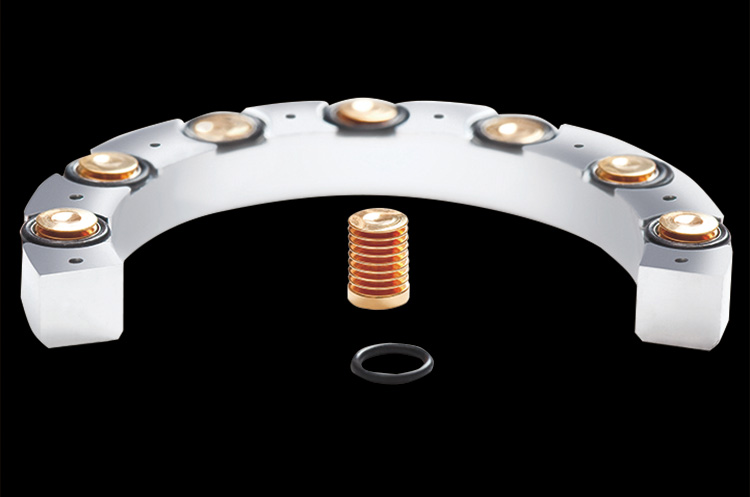

7つのベローズ・システム

時計の内部に7つの鞴(ふいご)で構成されるベローズ・システムを搭載。温度変化によって体積が変動するオイルに対し、小さなベローズが収縮することでこれを相殺する。このシステムの効果は、文字盤上に設置された温度計の表示を通して確認できる。



もっと知りたい方はこちら!

超弩級 複雑腕時計図鑑
『超弩級 複雑腕時計図鑑』3400円 >> Amazon.co.jpで購入
※表示価格は本書発売時(2020年11月6日)の税抜き価格です
