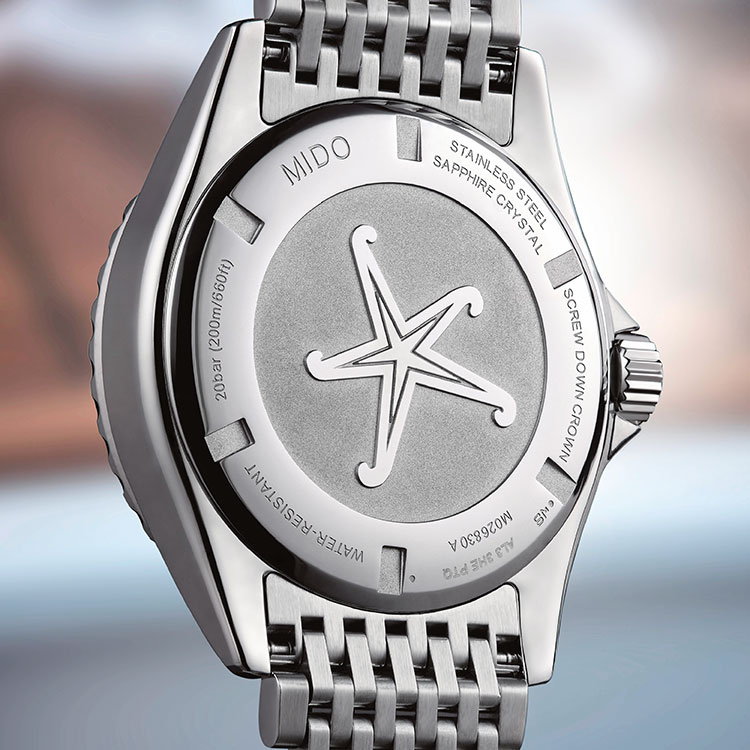

スクリューバック式
裏蓋の外側とケースの開口部にネジが切られ、それに合わせて裏蓋を回して締め付ける。隙間なく接合できるため優れた防水性能が得られるが、厚みは増す。

" } [1]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1253501) ["id"]=> int(1253501) ["title"]=> string(34) "ME_2023_udedokeinoshikumi_p82-85_3" ["filename"]=> string(38) "ME_2023_udedokeinoshikumi_p82-85_3.jpg" ["filesize"]=> int(142751) ["url"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3.jpg" ["link"]=> string(74) "https://www.mens-ex.jp/archives/1253497/me_2023_udedokeinoshikumi_p82-85_3" ["alt"]=> string(15) "ビス留め式" ["author"]=> string(2) "39" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(34) "me_2023_udedokeinoshikumi_p82-85_3" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1253497) ["date"]=> string(19) "2023-04-07 06:11:48" ["modified"]=> string(19) "2023-04-07 06:13:28" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(750) ["sizes"]=> array(18) { ["thumbnail"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3-300x300.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(300) ["medium_large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(750) ["large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3.jpg" ["large-width"]=> int(750) ["large-height"]=> int(750) ["1536x1536"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(750) ["2048x2048"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_3.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(750) } } ["entry_gallery_description"]=> string(256) "

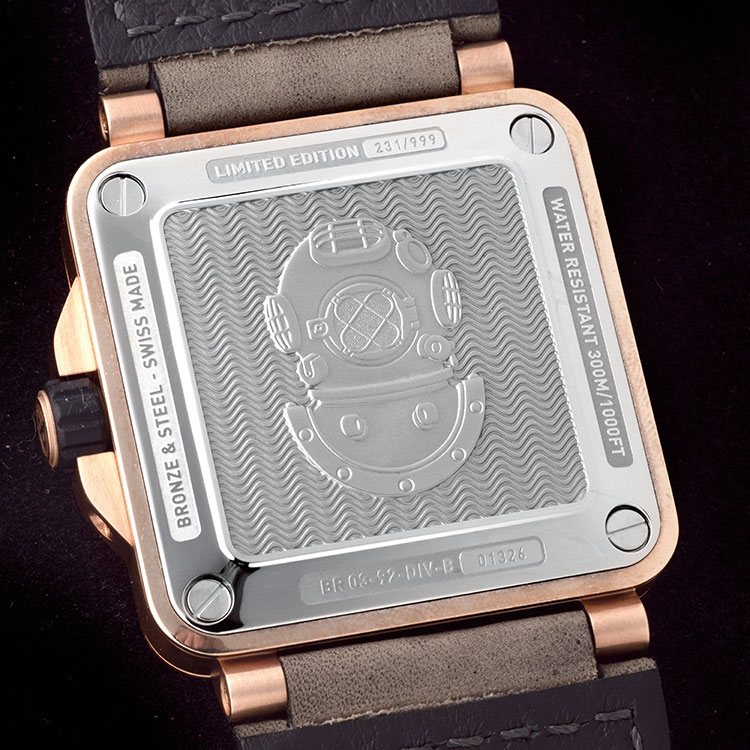

ビス留め式
丸型以外、スクリューバックは使えない。そこで裏蓋とケースとをビスで接合する構造が採られる。ガスケットに強く押し付けられるので、防水性も高い。

" } [2]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1253502) ["id"]=> int(1253502) ["title"]=> string(34) "ME_2023_udedokeinoshikumi_p82-85_4" ["filename"]=> string(38) "ME_2023_udedokeinoshikumi_p82-85_4.jpg" ["filesize"]=> int(100029) ["url"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4.jpg" ["link"]=> string(74) "https://www.mens-ex.jp/archives/1253497/me_2023_udedokeinoshikumi_p82-85_4" ["alt"]=> string(24) "シースルーバック" ["author"]=> string(2) "39" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(34) "me_2023_udedokeinoshikumi_p82-85_4" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1253497) ["date"]=> string(19) "2023-04-07 06:11:48" ["modified"]=> string(19) "2023-04-07 06:13:37" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(750) ["sizes"]=> array(18) { ["thumbnail"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4-300x300.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(300) ["medium_large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(750) ["large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4.jpg" ["large-width"]=> int(750) ["large-height"]=> int(750) ["1536x1536"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(750) ["2048x2048"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_4.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(750) } } ["entry_gallery_description"]=> string(274) "

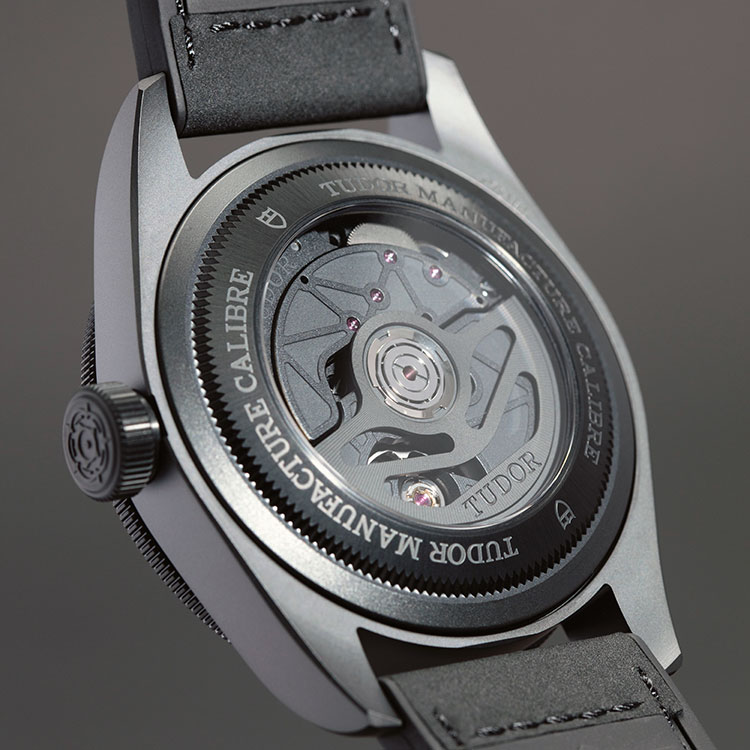

シースルーバック
開口することで、ムーブメントを観賞できるようにした裏蓋で、裏スケとも呼ばれる。開口部には、ガスケットを用いてサファイアクリスタルをはめ込んでいる。

" } [3]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1253503) ["id"]=> int(1253503) ["title"]=> string(34) "ME_2023_udedokeinoshikumi_p82-85_5" ["filename"]=> string(38) "ME_2023_udedokeinoshikumi_p82-85_5.jpg" ["filesize"]=> int(88639) ["url"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5.jpg" ["link"]=> string(74) "https://www.mens-ex.jp/archives/1253497/me_2023_udedokeinoshikumi_p82-85_5" ["alt"]=> string(24) "スナップバック式" ["author"]=> string(2) "39" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(34) "me_2023_udedokeinoshikumi_p82-85_5" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1253497) ["date"]=> string(19) "2023-04-07 06:11:49" ["modified"]=> string(19) "2023-04-07 06:13:50" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(750) ["sizes"]=> array(18) { ["thumbnail"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5-300x300.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(300) ["medium_large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(750) ["large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5.jpg" ["large-width"]=> int(750) ["large-height"]=> int(750) ["1536x1536"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(750) ["2048x2048"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_5.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(750) } } ["entry_gallery_description"]=> string(271) "

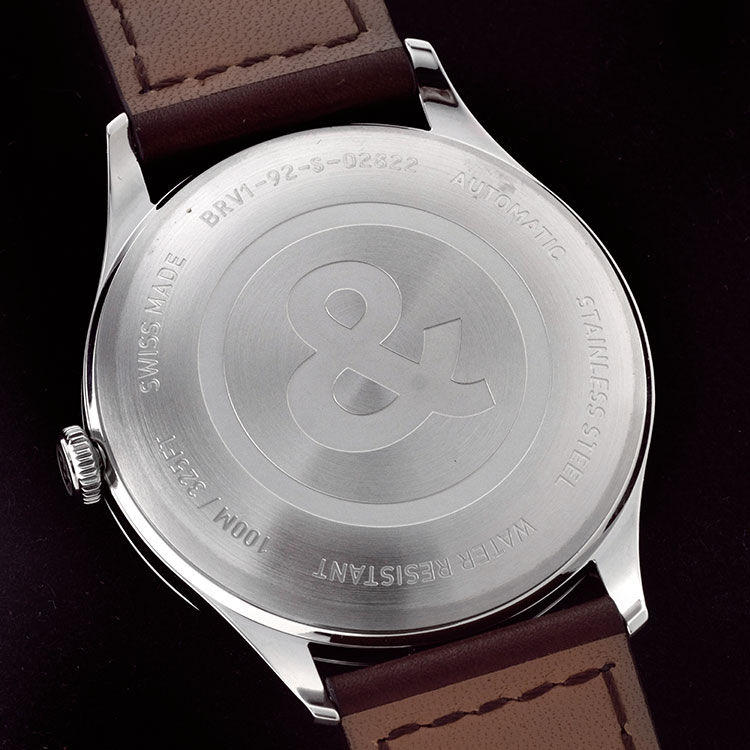

スナップバック式
裏蓋とケースの凹凸を合わせ、押し込んで接合させる。防水性に劣るため採用例は減っているが、ケースを薄くできるメリットを求め、用いられる場合もある。

" } [4]=> array(2) { ["entry_gallery_image"]=> array(24) { ["ID"]=> int(1253504) ["id"]=> int(1253504) ["title"]=> string(34) "ME_2023_udedokeinoshikumi_p82-85_6" ["filename"]=> string(38) "ME_2023_udedokeinoshikumi_p82-85_6.jpg" ["filesize"]=> int(83199) ["url"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6.jpg" ["link"]=> string(74) "https://www.mens-ex.jp/archives/1253497/me_2023_udedokeinoshikumi_p82-85_6" ["alt"]=> string(27) "一体型ケースバック" ["author"]=> string(2) "39" ["description"]=> string(0) "" ["caption"]=> string(0) "" ["name"]=> string(34) "me_2023_udedokeinoshikumi_p82-85_6" ["status"]=> string(7) "inherit" ["uploaded_to"]=> int(1253497) ["date"]=> string(19) "2023-04-07 06:11:49" ["modified"]=> string(19) "2023-04-07 06:14:02" ["menu_order"]=> int(0) ["mime_type"]=> string(10) "image/jpeg" ["type"]=> string(5) "image" ["subtype"]=> string(4) "jpeg" ["icon"]=> string(62) "https://www.mens-ex.jp/wp/wp-includes/images/media/default.png" ["width"]=> int(750) ["height"]=> int(750) ["sizes"]=> array(18) { ["thumbnail"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6-150x150.jpg" ["thumbnail-width"]=> int(150) ["thumbnail-height"]=> int(150) ["medium"]=> string(99) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6-300x300.jpg" ["medium-width"]=> int(300) ["medium-height"]=> int(300) ["medium_large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6.jpg" ["medium_large-width"]=> int(750) ["medium_large-height"]=> int(750) ["large"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6.jpg" ["large-width"]=> int(750) ["large-height"]=> int(750) ["1536x1536"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6.jpg" ["1536x1536-width"]=> int(750) ["1536x1536-height"]=> int(750) ["2048x2048"]=> string(91) "https://www.mens-ex.jp/wp/wp-content/uploads/2023/05/ME_2023_udedokeinoshikumi_p82-85_6.jpg" ["2048x2048-width"]=> int(750) ["2048x2048-height"]=> int(750) } } ["entry_gallery_description"]=> string(271) "

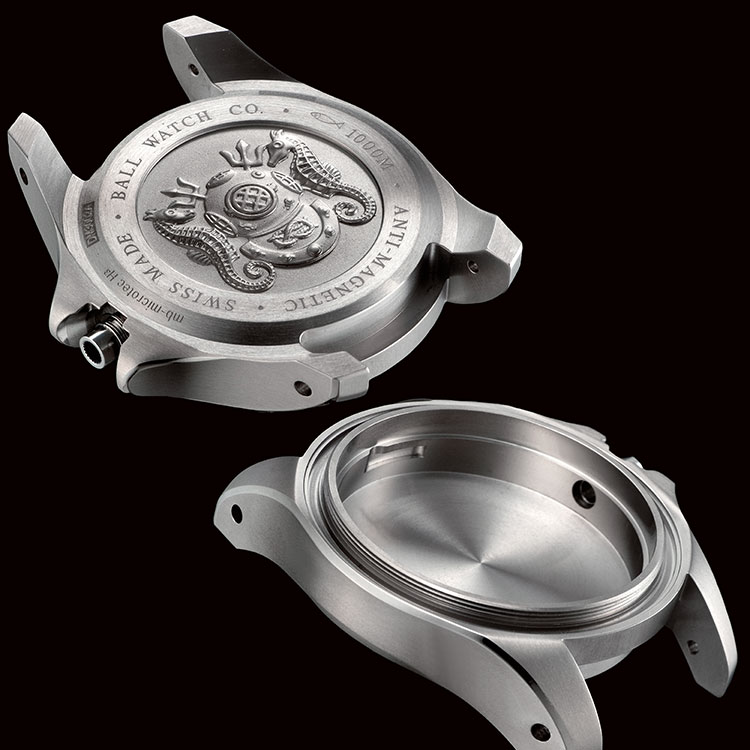

一体型ケースバック
裏蓋とケースが一体化したワンピース構造は、防水性と耐久性に極めて優れている。一方、ムーブメントのメンテナンスがしづらいため、採用例は限られる。

" } }
Facebook
Twitter
友だち追加

読者諸兄には時計好きの方も多いと思うが、機械式時計の基本構造、ムーブメントの仕組みやメカニズムまで、詳細に理解している方はまだまだ少ないのでは?と想像する。そんな方に向けた、腕時計の仕組みを“世界一わかりやすく”解説した本『世界一わかりやすい 腕時計のしくみ』が誕生。その中から一部をピックアップしてご紹介する。

時計外装のしくみ[ケース及び裏蓋]

建築などでも使われる外装とは、漢字が示すように外側の装い。ムーブメントを保護し、腕にフィットさせる機能を担う。腕時計は装飾品でもあり、外装は見た目を決める重要な要素。単に機能するだけに留まらず、いかに美観を高めるかも考え、ブランド各社はデザインや仕上げに工夫を凝らす。

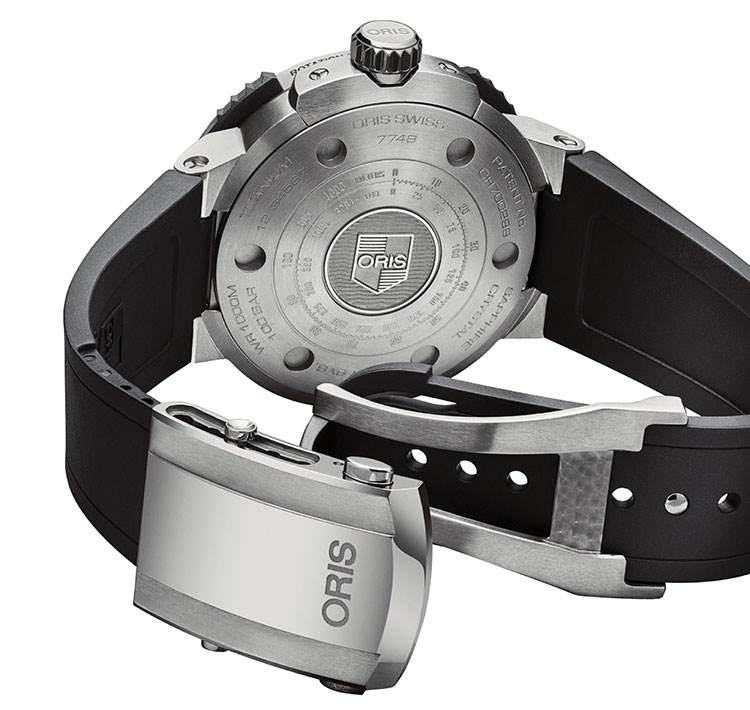

オリスの「プロダイバー GMT」の裏蓋
オリスの「プロダイバー GMT」の裏蓋はしっかりとねじ込まれ、水深1000mの水圧に耐える。裏蓋中央には、メートルとフィートとの換算スケールが刻まれている。

外装のしくみ

ケース及び裏蓋

ケースは、ムーブメントを格納する容器。大半が裏蓋を取り外し、ムーブメントを出し入れする。ケースのフォルムによって、時計の印象は変わる。


[ケース及び裏蓋の役割]

ムーブメントの容器であるケースには、上下にストラップやブレスレットを取り付けるラグ(日本語では、かん)と呼ばれる脚が付いている。ケース表面のダイヤル回りはベゼルと呼ばれ、一体型やねじ込み式、ビス留め式などがある。着脱可能な裏蓋は、ムーブメントの出し入れ口。ケースの大半は耐蝕性に優れる18金とプラチナ、ステンレススティールを使っているほか、軽量で頑強なチタン合金やカーボン、硬く傷付かないセラミックなどの使用例も多い。

<p><strong>スクリューバック式</strong><br />裏蓋の外側とケースの開口部にネジが切られ、それに合わせて裏蓋を回して締め付ける。隙間なく接合できるため優れた防水性能が得られるが、厚みは増す。</p>

スクリューバック式
裏蓋の外側とケースの開口部にネジが切られ、それに合わせて裏蓋を回して締め付ける。隙間なく接合できるため優れた防水性能が得られるが、厚みは増す。

<p><strong>ビス留め式</strong><br />丸型以外、スクリューバックは使えない。そこで裏蓋とケースとをビスで接合する構造が採られる。ガスケットに強く押し付けられるので、防水性も高い。</p>

ビス留め式
丸型以外、スクリューバックは使えない。そこで裏蓋とケースとをビスで接合する構造が採られる。ガスケットに強く押し付けられるので、防水性も高い。

<p><strong>シースルーバック</strong><br />開口することで、ムーブメントを観賞できるようにした裏蓋で、裏スケとも呼ばれる。開口部には、ガスケットを用いてサファイアクリスタルをはめ込んでいる。</p>

シースルーバック
開口することで、ムーブメントを観賞できるようにした裏蓋で、裏スケとも呼ばれる。開口部には、ガスケットを用いてサファイアクリスタルをはめ込んでいる。

<p><strong>スナップバック式</strong><br />裏蓋とケースの凹凸を合わせ、押し込んで接合させる。防水性に劣るため採用例は減っているが、ケースを薄くできるメリットを求め、用いられる場合もある。</p>

スナップバック式
裏蓋とケースの凹凸を合わせ、押し込んで接合させる。防水性に劣るため採用例は減っているが、ケースを薄くできるメリットを求め、用いられる場合もある。

<p><strong>一体型ケースバック</strong><br />裏蓋とケースが一体化したワンピース構造は、防水性と耐久性に極めて優れている。一方、ムーブメントのメンテナンスがしづらいため、採用例は限られる。</p>

一体型ケースバック
裏蓋とケースが一体化したワンピース構造は、防水性と耐久性に極めて優れている。一方、ムーブメントのメンテナンスがしづらいため、採用例は限られる。
